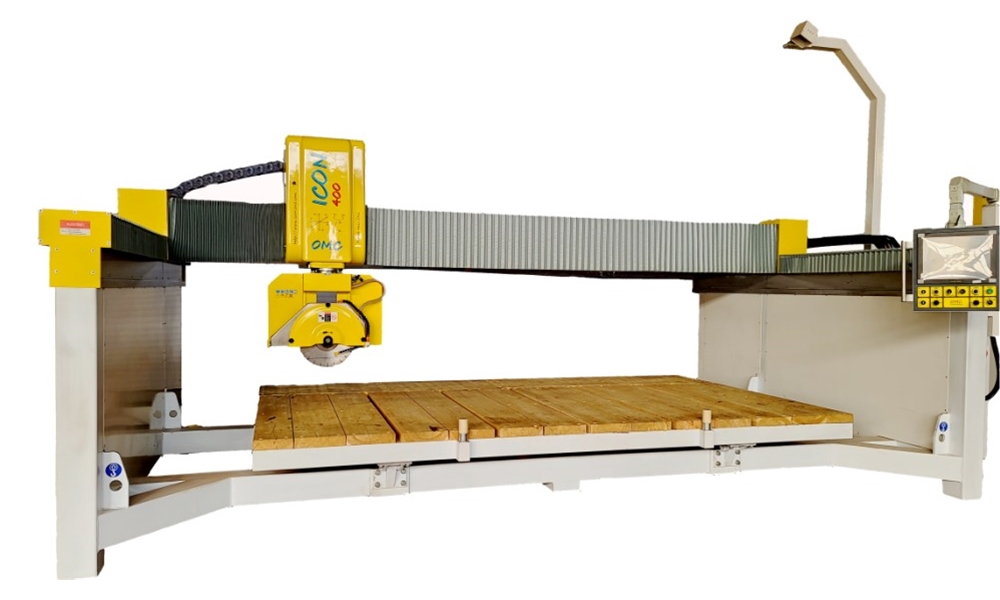

VOYAGE five-axis bridge cut

Name：VOYAGE five-axis bridge cut

Details


Wei Zhi five-axis bridge cut. Using microcomputer control system, can realize manual programming, or PC programming and other programming methods, automatic completion of processing operations. Can be convenient for cutting, edge grinding, grooving, kitchen table processing, shaped processing and other occasions.
Product features
1. Photographing, typesetting and positioning, and automatic measurement of plate thickness and tool size.
2. Use good computer system control, simple operation, high efficiency.
3 choose good quality electrical appliances, long service life, low maintenance cost
4. The native supports one-click transformation in multiple languages.

Technical Parameters and Price

 Programming method

Manual programming

 Programming method 2

CAD

 Control method

CNC

 Main motor power

11kw

Working voltage

380V-3phase/50HZ

R.P.M

6000r/min

 Blade size

500mm

 X-axis working stroke

3500mm

  Y-axis working stroke

2000mm

 Z-axis working stroke

260mm

 A-axis working stroke

360°

 B-axis working stroke

0-90°

  Cutting thickness

100mm

 Processing precision

0.2mm

 Working table size

3500*2000mm

 Tilting working table

YES

  Camera

YES

 Overall size

6307*4925*3414mm

Weight

6500KG
